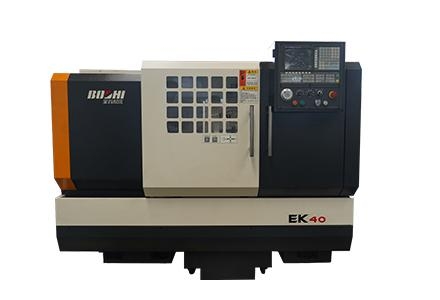

EK40 is a simple CNC lathe directly driven by servo main motor with independent spindle structure, which is suitable for teaching and training in colleges and universities, and can also meet the needs of small and medium-sized parts in light industry and other mechanical industries, especially non-ferrous metals, for high-speed and high-efficiency machining.
|
Item |
EK40 |
EK40.1000 |
|||
|
Capacity |
Max. swing diameter over bed(mm) |
Φ400 |
|||
|
Max. swing diameter over slide (mm) |
Φ200 |
||||
|
Max. turning diameter (mm) |
Φ 400/Φ 270 (six workstations) |
||||
|
Center distance (mm) |
750/690 (six workstations) |
1000/940 (six workstations) |
|||
|
Max. turning length(mm) |
580/520 (six workstations) |
830/770 (six workstations) |
|||
|
Spindle |
spindle thru-hole(mm) |
Φ57 |
|||
|
Spindle nose |
ISO702/I A2-6 manual chuck, 8 "hydraulic chuck ISO702/ Ⅰ A2-5 6"Hydraulic chuck |
||||
|
Spindle speed(r/min) |
140-3000 (stepless) (when equipped with Hydraulic Chuck) |
||||
|
Chuck diameter(mm) |
Φ200 |
||||
|
Main motor power (kw) |
5.5 (Servo) |
||||
|
tailstock |
Sleeve diameter/travel (mm) |
Φ 65/120 (manual Tailstock) |
|||
|
Taper of tailstock quill |
MT No.4 |
||||
|
Apron |
Travel distance X/Z(mm) |
230 (170 six workstations)/ 590 (530 six workstations) |
230 (170 six workstations)/ 840 (780 six workstations) |
||
|
Rapid feed speed X/Z(m/min) |
6/8 |
||||
|
Turret |
Number of work positions/type |
4 (vertical)/6 (horizontal six station optional) |
|||
|
Boring tool diameter (mm) |
Φ32 |
||||
|
Tool size(mm) |
20 × 20/25 × 25 (six workstations) |
||||
|
Others |
Power Supply (kVA) |
12 kVA |
|||
|
Main motor belt |
3V-710 |
||||
|
Volume (length x width x height) (mm) |
2150X1260X1600 |
2400X1260X1600 |
|||
|
Total weight (kg) |
1700 |
2100 |
|||
|
Max. workpiece processing weight (with clamps at both ends) (kg) |
550 (Φ 200 manual 3-jaw) |
||||
